Contents



1. What’s in the Box

2. Installing Your Terminal

3. Setting Your Merchant Password

4. Useful Operational Tips

5. Help & Contact Information

6. Replacement Terminal Process

7. Guides & Video Support

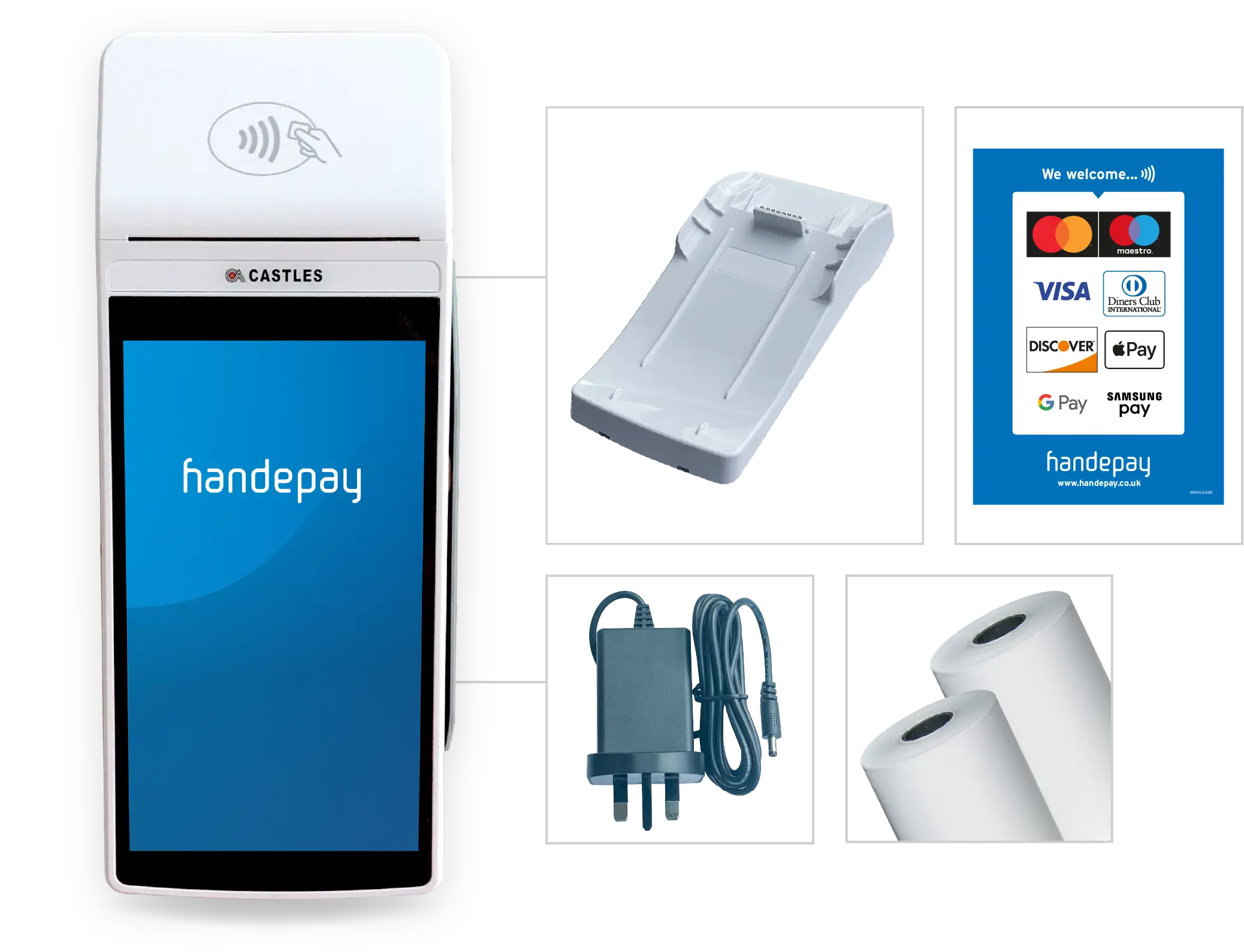

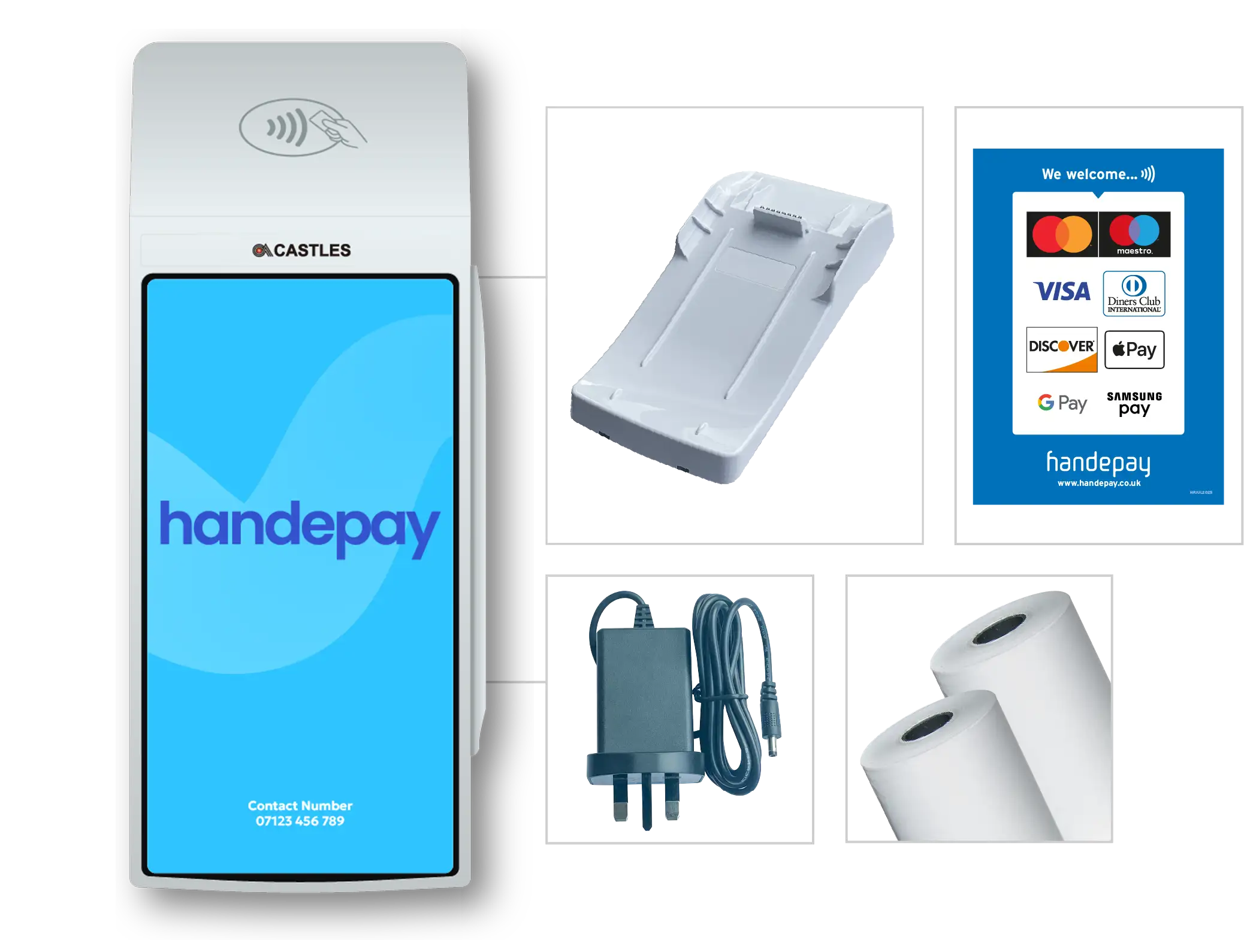

What’s in the Box



Your package includes:

  • Your payment terminal (pre‑configured and ready to use)
  • Power supply unit
  • 2 × thermal paper rolls
  • For desktop devices: network (LAN) cable

Important: Before installing your new terminal, please complete any banking or end‑of‑day settlement on your old device.

We're here to help



Below is a simple walkthrough to help you get started setting up your terminal. But don't worry, you will also receive a call from one of our account managers on the day your terminal is delivered to make sure you get everything set up and ready to go. If you need to talk to us before then you can give us a call on 01942 400 062.

Installing Your Terminal



Using a Charging Base



  1. Connect the power supply to the 9V socket on the charging dock.
  2. Plug the other end into a power outlet and switch it on.



Without a Charging Base



  1. Connect the power supply to the port with the lightning symbol on the terminal.
  2. Plug the other end into a power socket.

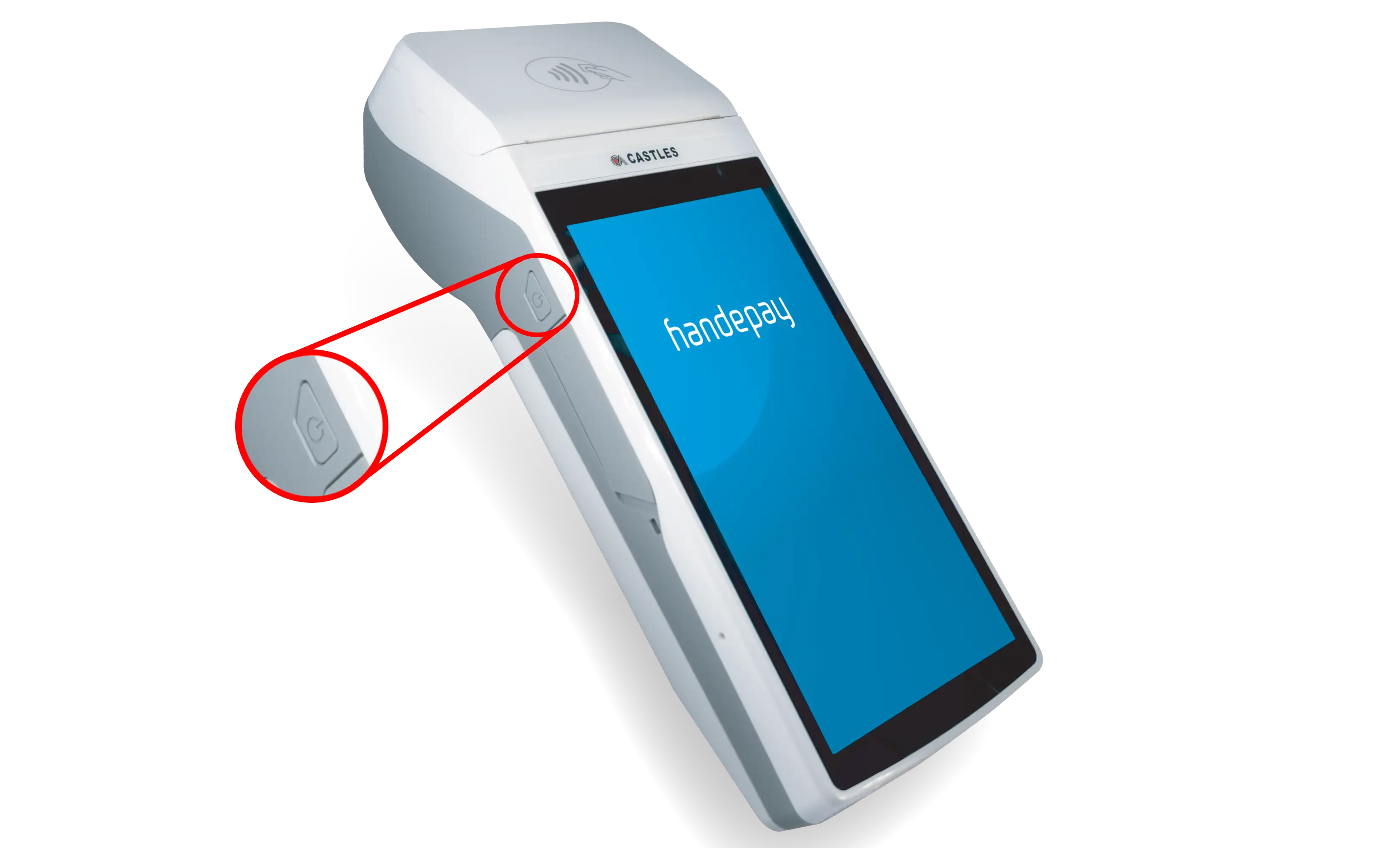

Starting up your terminal

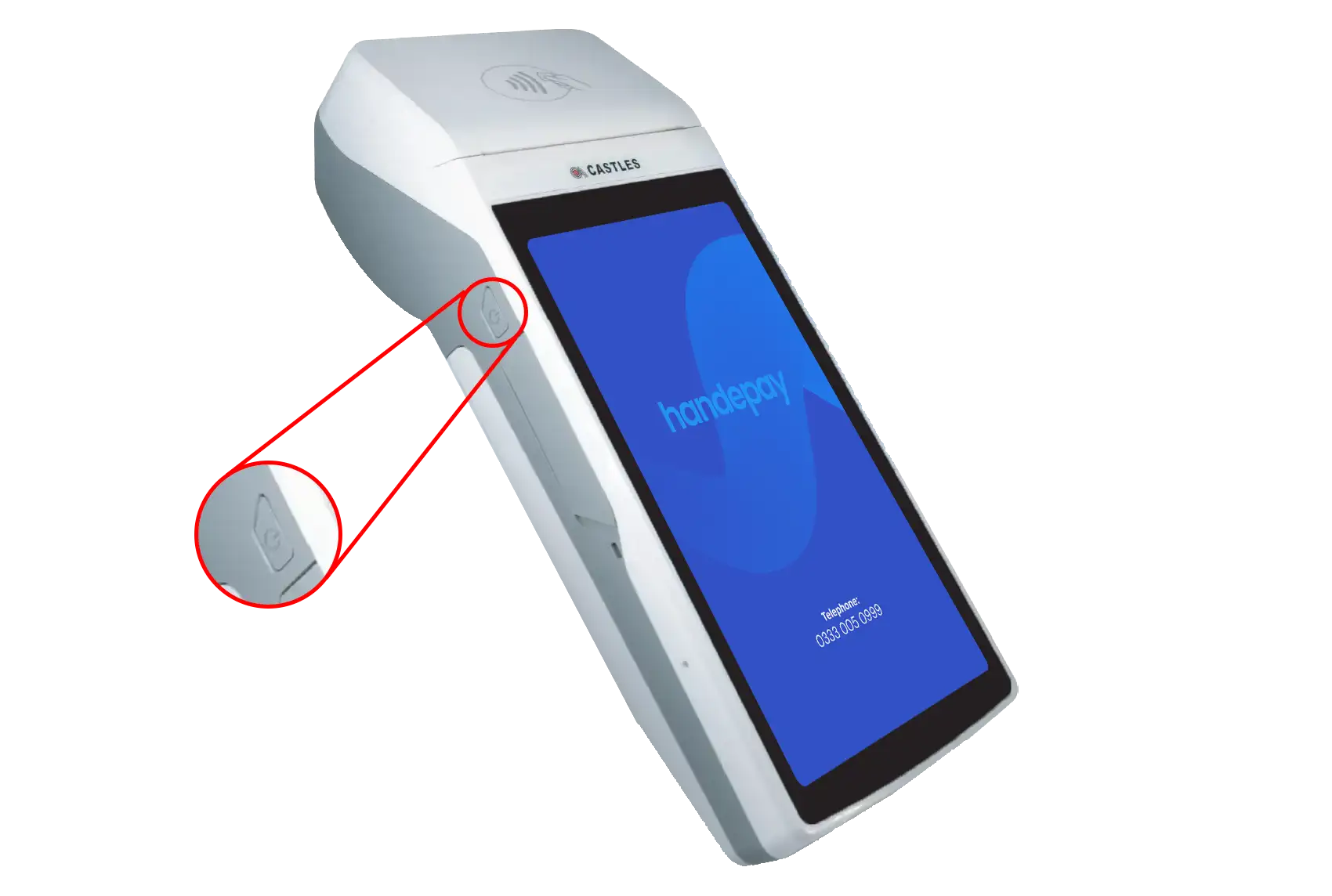

  1. Press and hold the power button on the left side until the screen lights up.
  2. The terminal will initialise automatically.
  3. When the home screen appears, select the relevant application to begin trading.

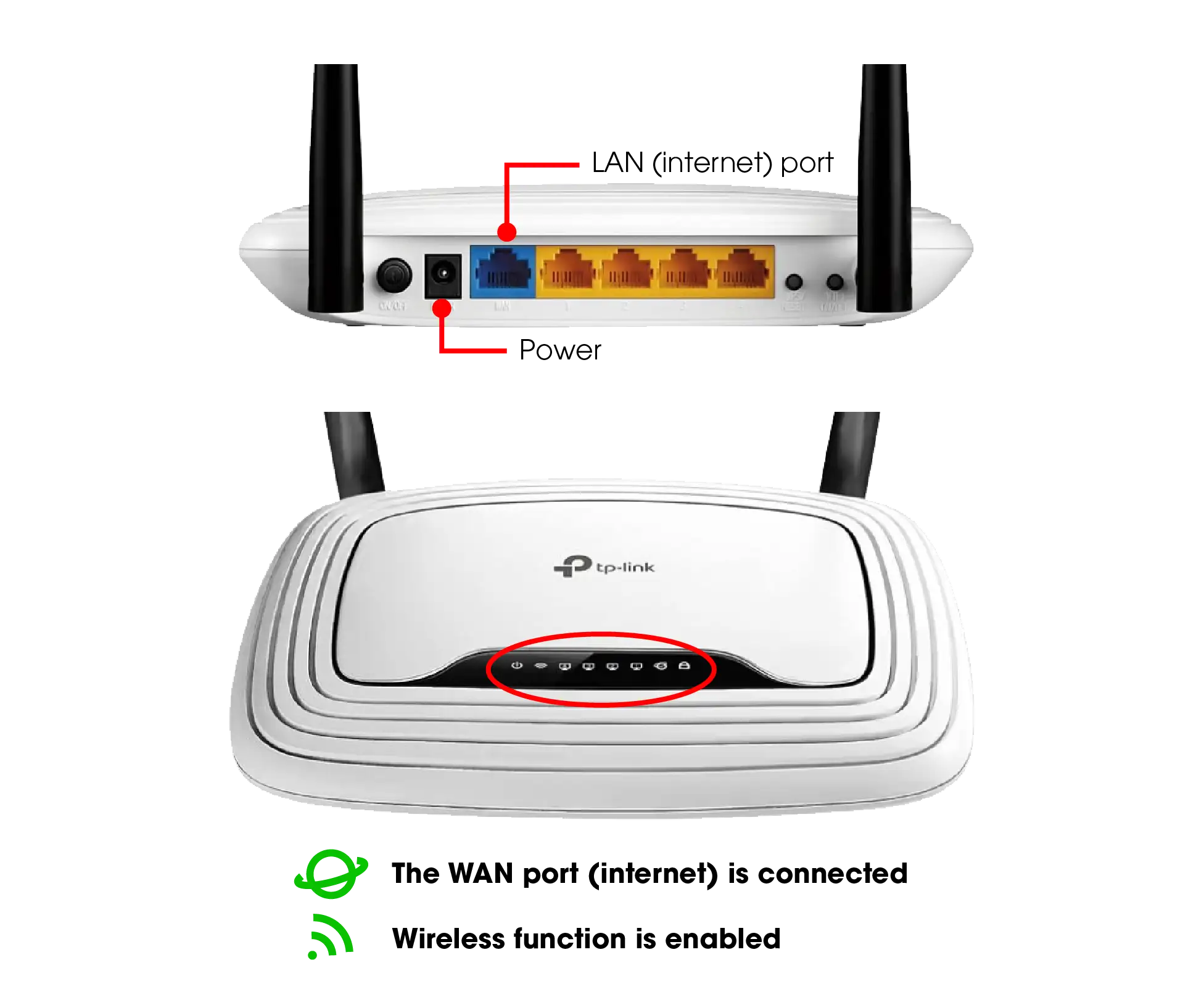

Router installation (Optional)

If you’re using the optional router:

  1. Plug the LAN cable into the blue port on the supplied router.
  2. Connect the other end to your internet source (router or network socket).
  3. Plug in the power supply.
  4. When the Internet and Wi-Fi indicators turn green, you can switch on your terminal.

Setting Your Merchant Password



Some functions - refunds, settlements, voice referrals - require a Merchant Password.

  • Default password: 0000
  • For security, you must change this immediately to protect your business from misuse or fraud.



How to Change Your Password – Saturn Android

  1. Ensure the terminal is showing the sale screen.
  2. Press the Back Arrow.
  3. Select MENU → SETTINGS → PASSWORD.
  4. Enter the old password (0000 by default).
  5. Enter your new 4‑digit password.
  6. Select SAVE.

You’ll see “Save Success” once complete.



Guide to change your password - Saturn Android





How to Change Your Password - Vega

  1. Ensure the terminal is showing the sale screen (press red ‘X’ key to prompt it).
  2. Press the F1 key to display the Reports and Terminal Menu.
  3. Press the down arrow key to show the additional menu items.
  4. Select SETUP → PASSWORD → CHANGE from the menu.
  5. Enter the old password (0000 by default) and press OK key.
  6. Enter your new 4‑digit password and press OK key.
  7. Repeat the previous step, the terminal will beep and display TRANSACTION ACCEPTED.

Tip: Update your password every three months for added security.



Forgot your password?



Call the helpdesk with your Terminal ID and Merchant ID. A reset will be carried out, after which you must set a new password.

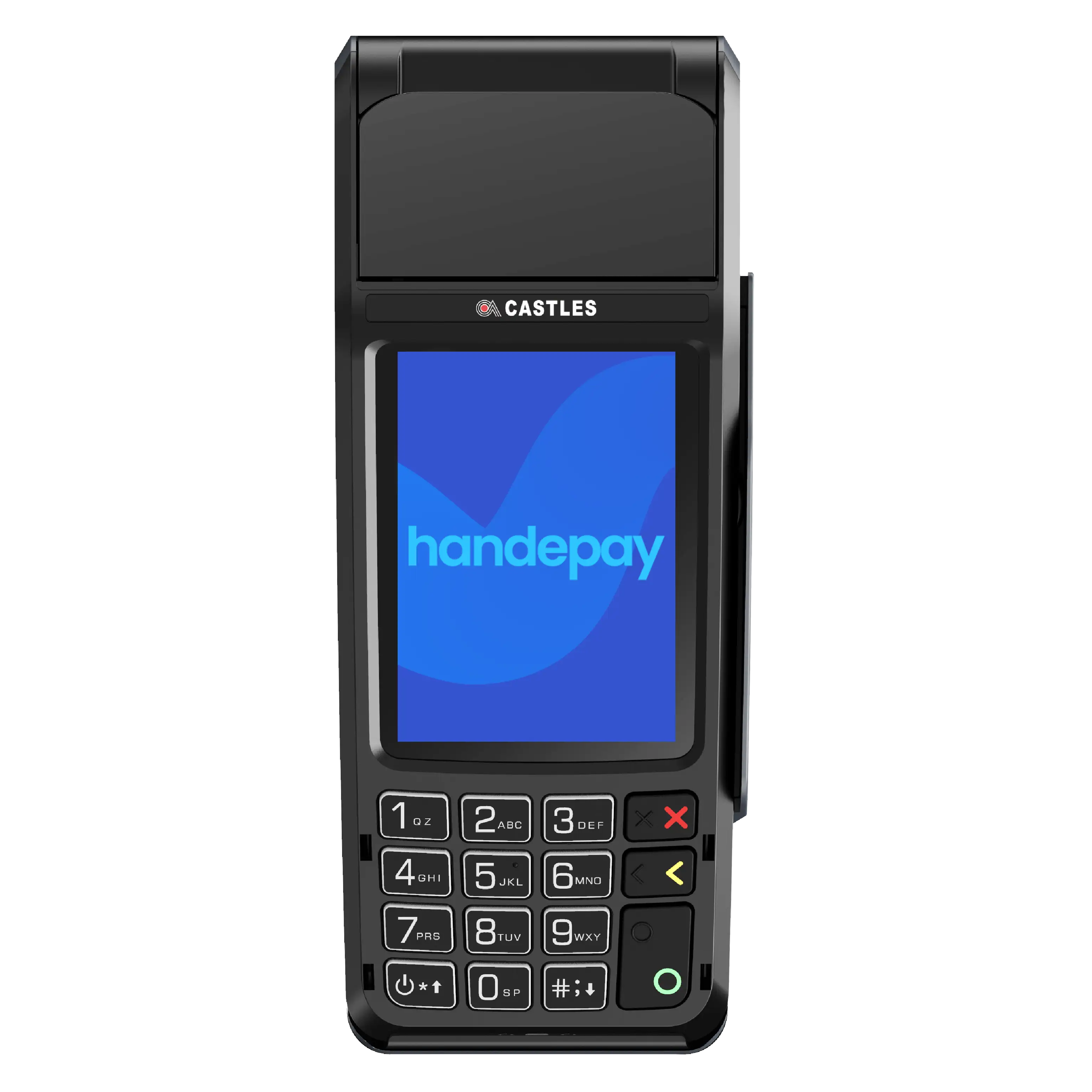

Handepay card machine

Useful Operational Tips

Cardholder Not Present (CNP) / Manual Entry Payments



From the Enter Amount screen:

  1. Key in the amount and press OK.
  2. Confirm amount by pressing CORRECT.
  3. Select MANUAL.
  4. Enter the long card number → OK.
  5. Follow the onscreen prompts:
    • Expiry date (MMYY)
    • Card Present: NO
    • CVV (last 3 digits)
    • Postcode + house number

Note: Screens may vary depending on your Acquirer.

Guide: CNP (Manual Entry) Payment – EVO



Guide: CNP (Manual Entry) Payment - Lloyds, Worldpay





Settlement (End‑of‑Day)



From the Enter Amount screen:

  1. Press Back Arrow.
  2. Select OTHERS → BATCH → SETTLE.
  3. Enter password (default 0000) → press OK.
  4. If prompted, press 0 to select “All”.
  5. The terminal will print totals once successfully settled.


Auto‑Batch: If enabled, your terminal will automatically settle between 22:00 and 23:59. Leave your terminal powered on overnight.


Guide: Settlement (End of Day) - EVO

Guide: Settlement (End of Day) - Lloyds, Worldpay





Training Mode



Training mode allows you to practise transactions. These are not live and no funds are processed. Training mode displays an orange background.

Enable Training Mode
Back Arrow → MENU → TRAINING → ENABLE → YES.

Disable Training Mode
Back Arrow → MENU → TRAINING → DISABLE → YES.

Guide: Enable/Disable Training Mode



Terminal Maintenance



To ensure your terminal receives updates and maintenance:

  • Keep it plugged in
  • Keep it switched on overnight

This allows technical enhancements and software updates to be applied seamlessly.



Help & Contact Information



Castles Technical Helpdesk



Handepay



Merchant Rentals

•    Phone: 01942 407 980



Acquirers

  • Phone: 0333 005 0999.
    • Select Option 1 for Lloyds Cardnet
    • Select Option 2 for EVO
    • Select Option 3 for Worldpay
    • Then select the appropriate option for your enquiry

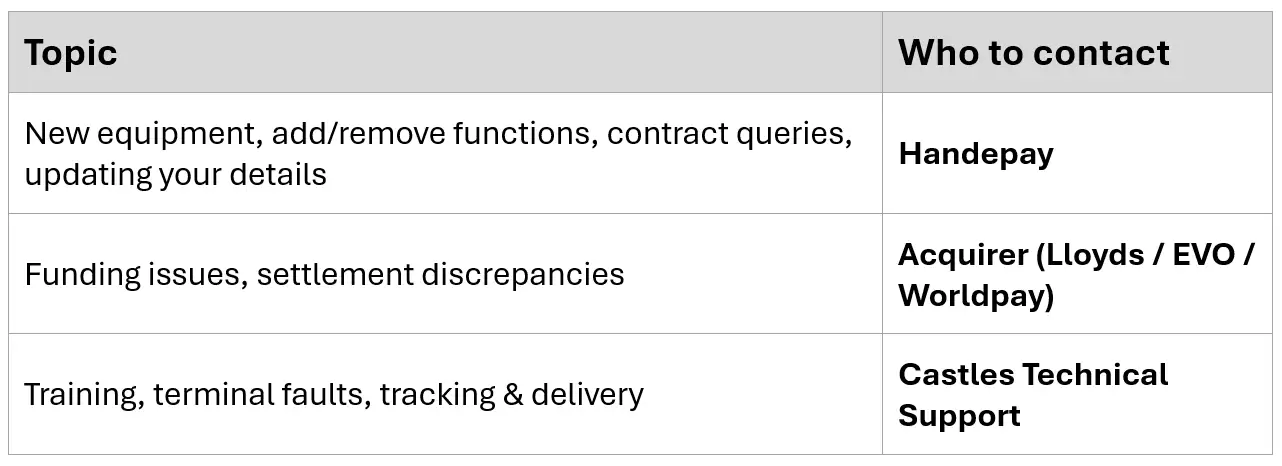

Who to contact information

Replacement Terminal Process



If you ever need a replacement:

  1. Contact Castles Technical Helpdesk: 0333 005 0999 → Select your acquirer → Option 1
  2. Orders placed before 4pm arrive next business day (8am–6pm): Exceptions: Scottish Highlands, Islands, Isle of Man, Scilly Isles
  3. Your old terminal will be collected at the same time—have it ready in the courier’s returns box.
  4. Leave any SIM card in the old device; a new SIM will be pre‑fitted in the replacement.



Guides & Video Support



For easy-to-follow installation videos, quick reference guides and FAQ's click here.



Return to top

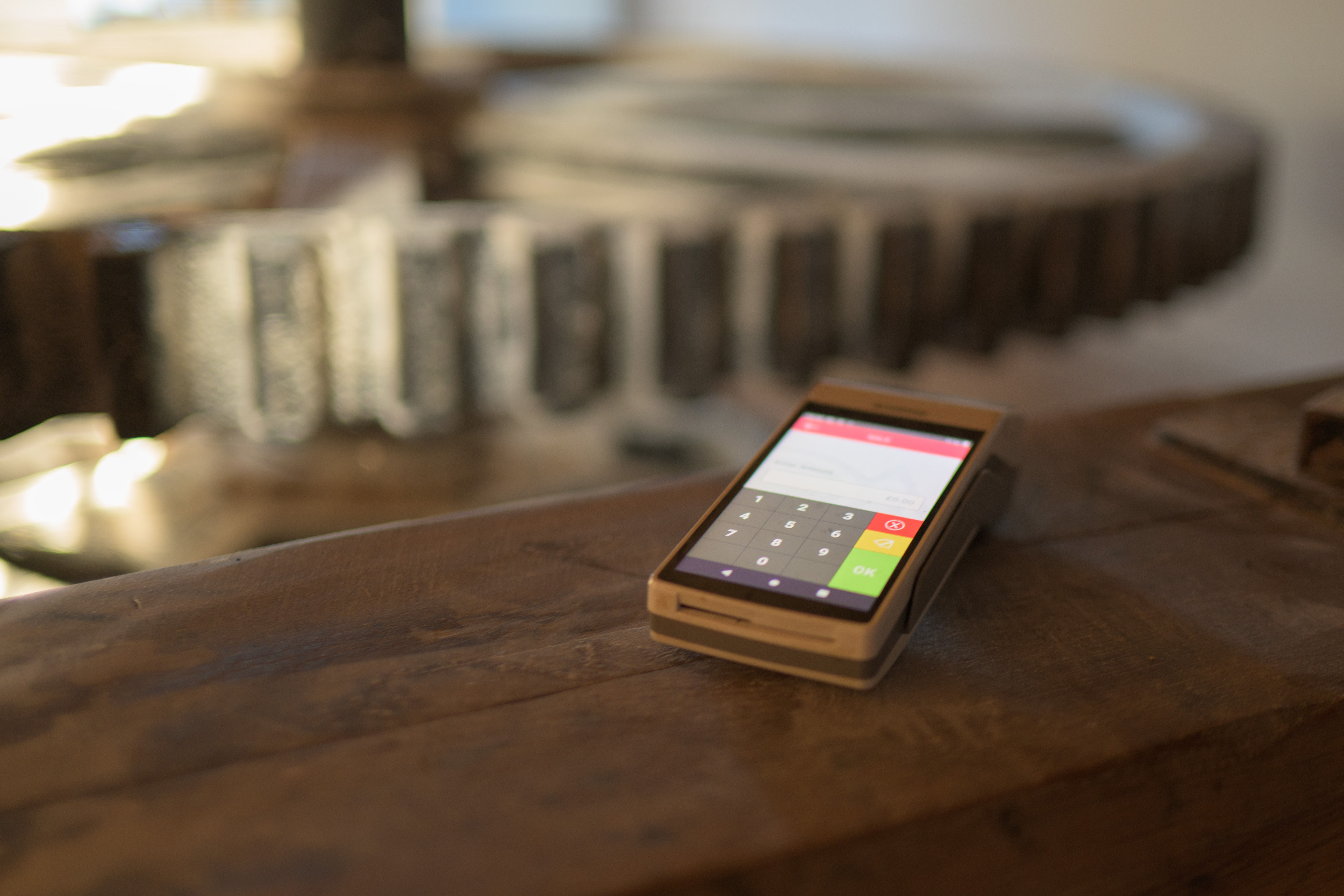

Card terminal on a counter
